AMPEGGIO MONOS


Back in Black


Introducing the Black Edition



Upcoming for late 2018/early 2019 is our fourth revision of our highly acclaimed monobloc amps with a completely new circuit, chokes and silver wiring.




An acoustical makeover

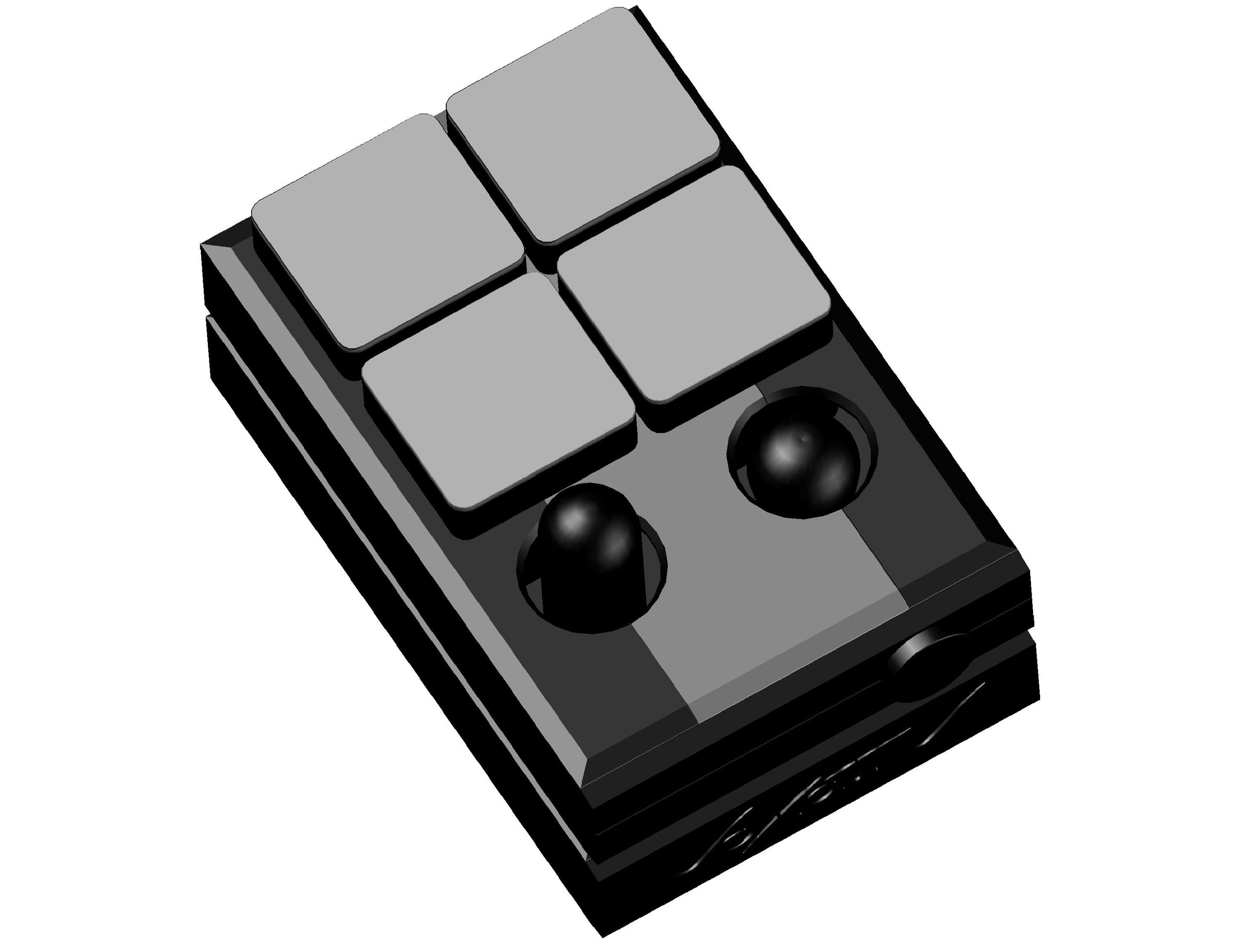

A match of 845 and 300B driver tubes are mechanically decoupled from the chassis and protected by the upper housing. This avoids all microphonic effects and increases the precision and wonderful pure sound of this amplifier.


Arbeit im Gange.png

Ready Q1 2019

Stay curious.


AMPEGGIO MONOS IN DETAIL

29,900.00

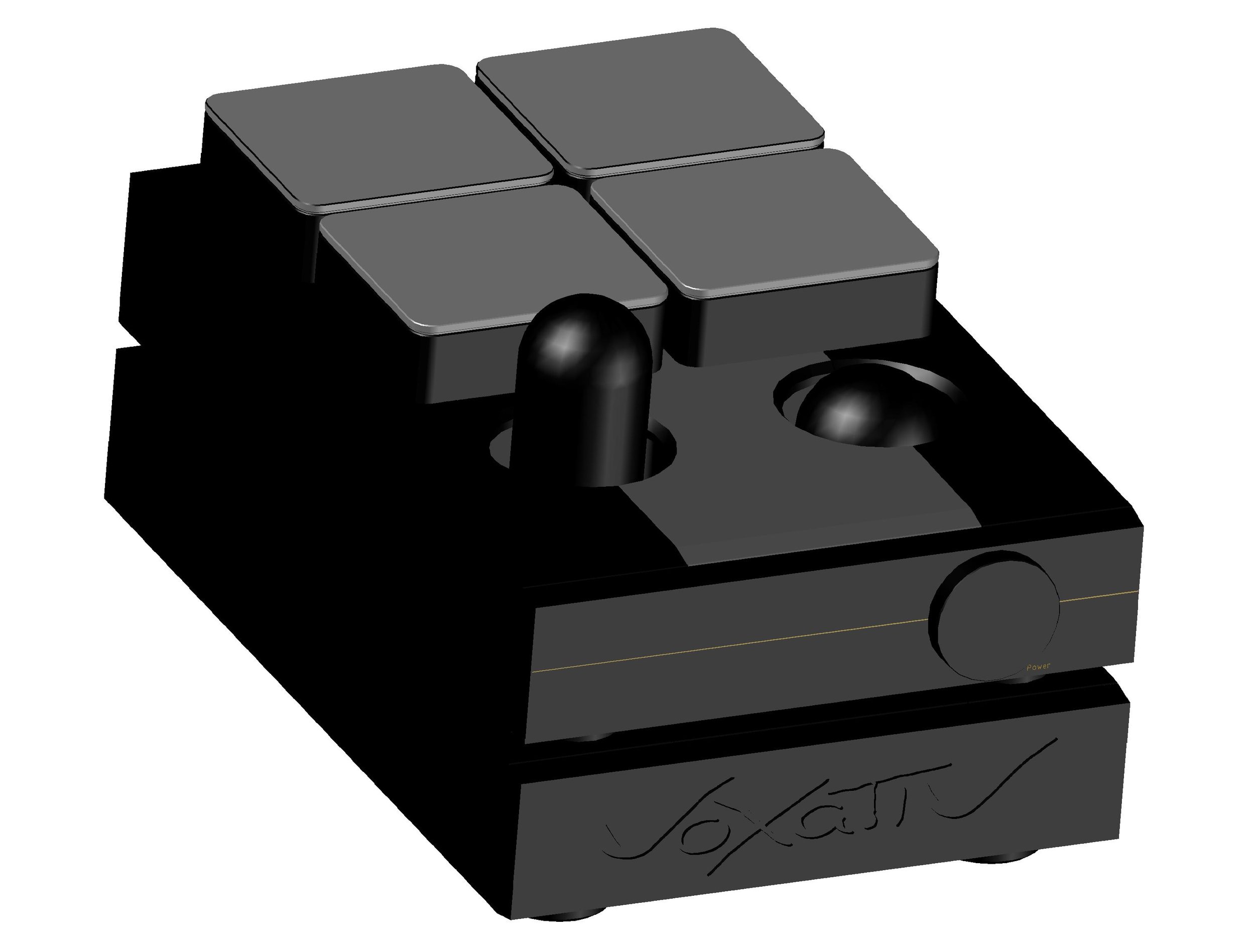

Our Monoblocks return in 2019 as The Black Edition

Our fourth revision of this acclaimed set of amps continues the tradition of pin-drop quiet noise floors and hand-crafted circuit designs. The sonic backgrounds are just as pitch black as the new two-tier aluminum shroud that protects the sensitive tubes and circuitry.



Most Voxativ loudspeakers do not need much more than two watts of amplification to really sing. Remember, the average Voxativ loudspeaker has a minimum efficiency of 100dB. The 18 single-ended watts of these monobloc amplifiers can fill a concert hall and still sound gigantic.

Most amplifiers on the market are not made with low enough noise/hum levels to effectively drive our loudspeakers. This new revision to the amp circuitry is absolutely quiet and especially tuned for the needs of our high-efficiency full-range/wideband drivers.

This level of quiet -- pure black in both name and sound -- can only be realized by a clever new circuit design from the mind of Voxativ’s chief electronics engineer Stefan Noll.

In addition to this new quiet design, the relaunched version for 2019 will also sport smooth sounding output transformers and chokes that are specially manufactured by Voxativ. Furthermore all wiring is now silver, tube heating is DC, the interior and exterior binding posts are cast from pure copper.

This new Black Edition to the Voxativ family was born in Berlin and raised in Fulda, Germany.



TECHNICAL DATA

Frequency Response

20 - 20.000 Hz

Signal to Noise Ratio
95 dB

Distortion
1 %

Tubes
1 x 845, 1 x 300B, 1 x 6N7, 1x 6L7

Input Sensitivity
820 mV

Input
1 x line

Output
8, 16 Ohms

Power Consumption
200 W

Colour
silver

Dim (W x H x D)
11,4 x 9 x 18,5 in (29 x 23 x 47 cm)

Weight
69 lbs (31.5 kg)
