BASS MODULES


The only woofers fast enough to
accompany Voxativ drivers.

Bass cover.png
Bass_Extension_black_schräg_front mit Schild.jpg

The mighty Pi-Bass is an agile active dipole woofer system

linear down to 20 Hz and optimized with our Acoustic Stealth Technology®.

plate amp top close.jpg

A full crossover control on the Pi-Bass allows for seamless integration into any system.

Driving Pi full-range with speaker level output allows the Pi Bass to accept line level pre-amp outputs from an integrated amp like our T-211.


The Z-bass

The "little" sister who is great in sound

AST

Acoustic Stealth Technology

Our Bass modules are mechanically tuned with AST® – our proprietary housing design that dampens unwanted reflections.



Z-BASS IN THE PRESS


Bildschirmfoto 2018-03-26 um 16.09.09.png

The Z Bass

Star in the German "Audio" mag in Feb. 2018



BASS AROUND THE WORLD


Srajan Ebean of 6moons:  I would paraphrase it's core character as a dynamically turbo-charged electrostat (which would be enormous for equivalent bandwidth; and require very powerful amps happy into capacitive loads to drive). If you admire full-range stats for their top-to-bottom coherence, speed, boxlessness and transparency but always found them dynamically pale and ever more so with descending frequencies, Voxativ have a far more compact alternative which operates entirely outside those limitations.



Pi–BASS IN DETAIL


11,340.00

Say goodbye to subwoofer bloat, and hello to pure bass.

Reintroducing the wonderful Voxativ PI-Bass, the big brother of our famous Z Bass.

Simply the fastest, tightest, most coherent way to deliver articulate bass to your smaller listening room.

By developing the PI-Bass system, we have combined the Ripol® idea with our Acoustic Stealth Technology® - AST®. The result is a completely open system that has to move nearly zero air volume. Voxativ PI-Bass is equipped with 2 x 96dB drivers = 99dB.

This woofers do have a very low moving mass, a strong Neodymium motor and are extremely fast – as fast as Voxativ widebanders. The result is a powerful bass down to 20 Hz.

The PI-Bass woofer system is active and driven by a 200W class A/B plate amp. It has it's own adjustable crossover. We recommend a line connection to this system. High level entry is also possible.
So the only thing you need to drive the woofer system is a speaker connector or preamp out or alternatively high level connection.

All features like: Level, crossover frequency and phase adjustments are implemented for the perfect adaption to every existing stereo system.
We recommend a pair of these if used as bass extension.

Of course this woofer system fits all the smaller Voxativ loudspeaker systems.

Technical Data

Frequency Response
20 - 200 Hz

Driver
VOXATIV AC-PB

Efficiency max.
99 dB / 1W / 1 m

Capacity
200 W sinus

Dimensions (W x H x D)
16 x 16 x 16" (40x40x50cm)

Color
Piano Finish, white or black

Weight
60 lbs (30kg)

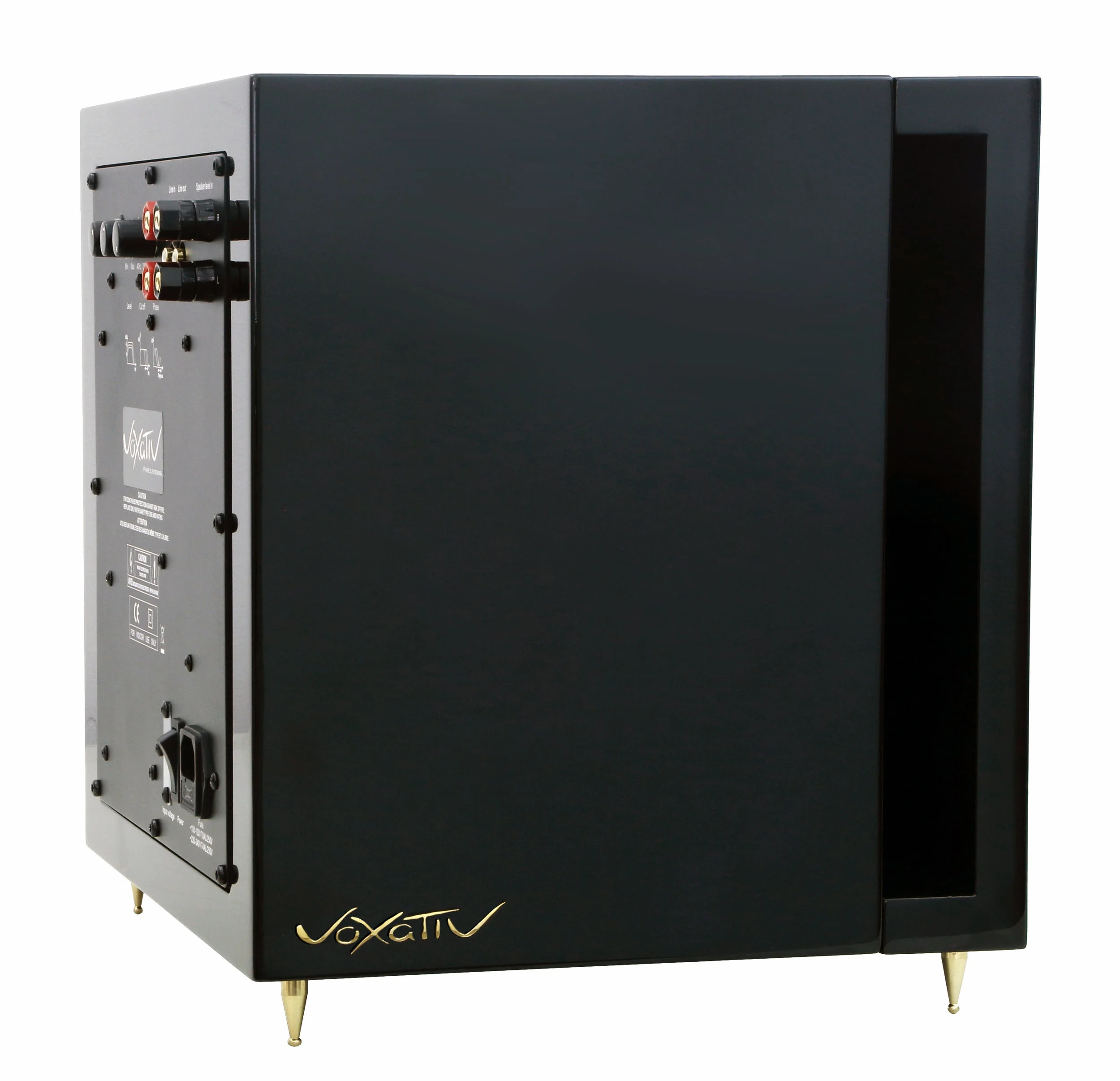

Z–BASS IN DETAIL


4,290.00

Say goodbye to subwoofer bloat, and hello to pure bass.

Reintroducing the wonderful Voxativ Z-Bass, the little brother of our famous PI Bass.

Simply the fastest, tightest, most coherent way to deliver articulate bass to your smaller listening room.

By developing the Z-Bass system, we have combined the Ripol® idea with our Acoustic Stealth Technology® - AST®. The result is a completely open system that has to move nearly zero air volume. Voxativ Z-Bass is equipped with a 96 dB driver.

This woofer does have a very low moving mass, a strong Neodymium motor and is extremely fast – as fast as Voxativ widebanders. The result is a powerful bass down to 20 Hz.

The Z-Bass woofer system is active and driven by a 240W class D plate amp. It has it's own adjustable crossover. We recommend a line connection to this system. High level entry is also possible.
So the only thing you need to drive the woofer system is a speaker connector or preamp out or alternatively high level connection.

All features like: Level, crossover frequency and phase adjustments are implemented for the perfect adaption to every existing stereo system.
We recommend a pair of these if used as bass extension.

Of course this woofer system fits all the smaller Voxativ loudspeaker systems.

Technical Data

Frequency Response
20 - 200 Hz

Driver
VOXATIV AC-Z

Efficiency max.
96 dB / 1W / 1 m

Capacity 240 W sinus

Dimensions (W x H x D)
16 x 16 x 16" (40x40x40cm)

Color
Piano Finish, white or black

Weight
30 lbs (15kg)

Quantity:
PLACE ORDER
