HAGEN


Pure listening in a pint-sized package.

Hagen

A new era of monitoring

Hagen transfers all the Voxativ widebander skills to the music maker: Musical frequency response, unbeatable resolution and transparency coupled with extremely high signal fidelity and perfect phase linearity

AF 1n front 1100.jpg

Small, yet formidable



Two different drive units can be chosen:

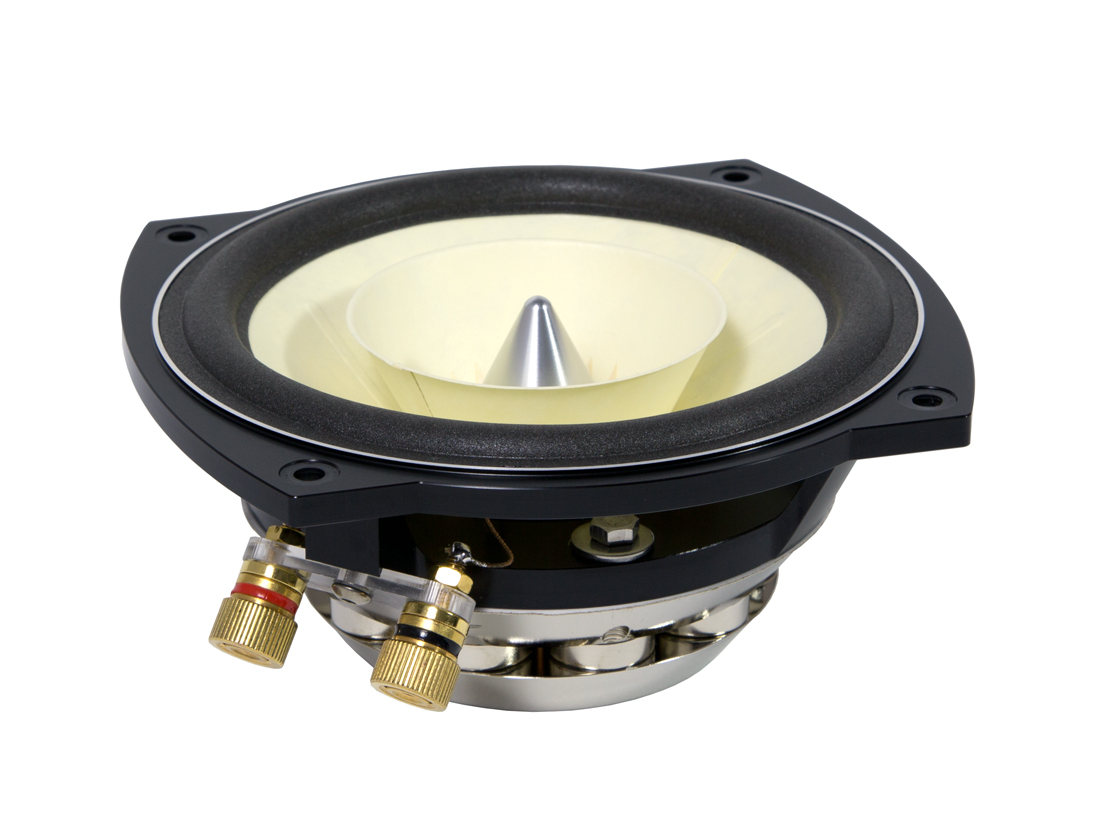

1. AF-1n for fullrange application
2. AF-2.6 for the use with a Z.Bass unit

AST

Accoustic Stealth Technology

Hagen is mechanically tuned with AST® – our proprietary housing design that dampens unwanted reflections.



HAGEN IN THE PRESS



The most exclusive studio monitor on the market.



HAGEN PLAYS LIVE




HAGEN AROUND THE WORLD




HAGEN IN DETAIL


The Hagen sound reproduction is homogeneous over the entire frequency range and free from signal altering affects caused by crossovers or other passive components. The signal remains as pure as physically possible.

The housing design corresponds to a horn principle and had been modified with the Voxativ Acoustic Stealth Technology® (AST®). It prevents the assembly from unwanted resonances or standing waves within the housing. The result: colorations cannot occur.

The driver’s light and sensitive cone is made from Japanese calligraphy paper. This cone is driven by our magnet motors: AF-1n.

The Hagen is made with highest quality workmanship. The surface is coated with real piano lacquer and gives this premium speaker its wonderful look.

On request the Hagen can be delivered with matching stands.

To cover the sub-bass range we recommend the combination with an active Voxativ Z-Bass woofer system.

Technical Data

Frequency Response
60 - 20.000 Hz

Driver
VOXATIV AF-1n or others

Efficiency
AF-1.5
= 92,5 / 96,0 dB / 2,83V / 1 m

Efficiency
AF-2.6
= 94,0 / 99,0 dB / 2,83V / 1 m

Capacity
50 W sinus

Dimensions (W x H x D)
20,5 x 36 x 25 cm / 8" x 14" x 10"

Color
Piano Finish, white or black, veneers

Weight
6 kg / 14 lbs
