AMPEGGIO T805 INTEGRATED


30W x 2 SET
Now any speaker can be driven by a Voxativ amp

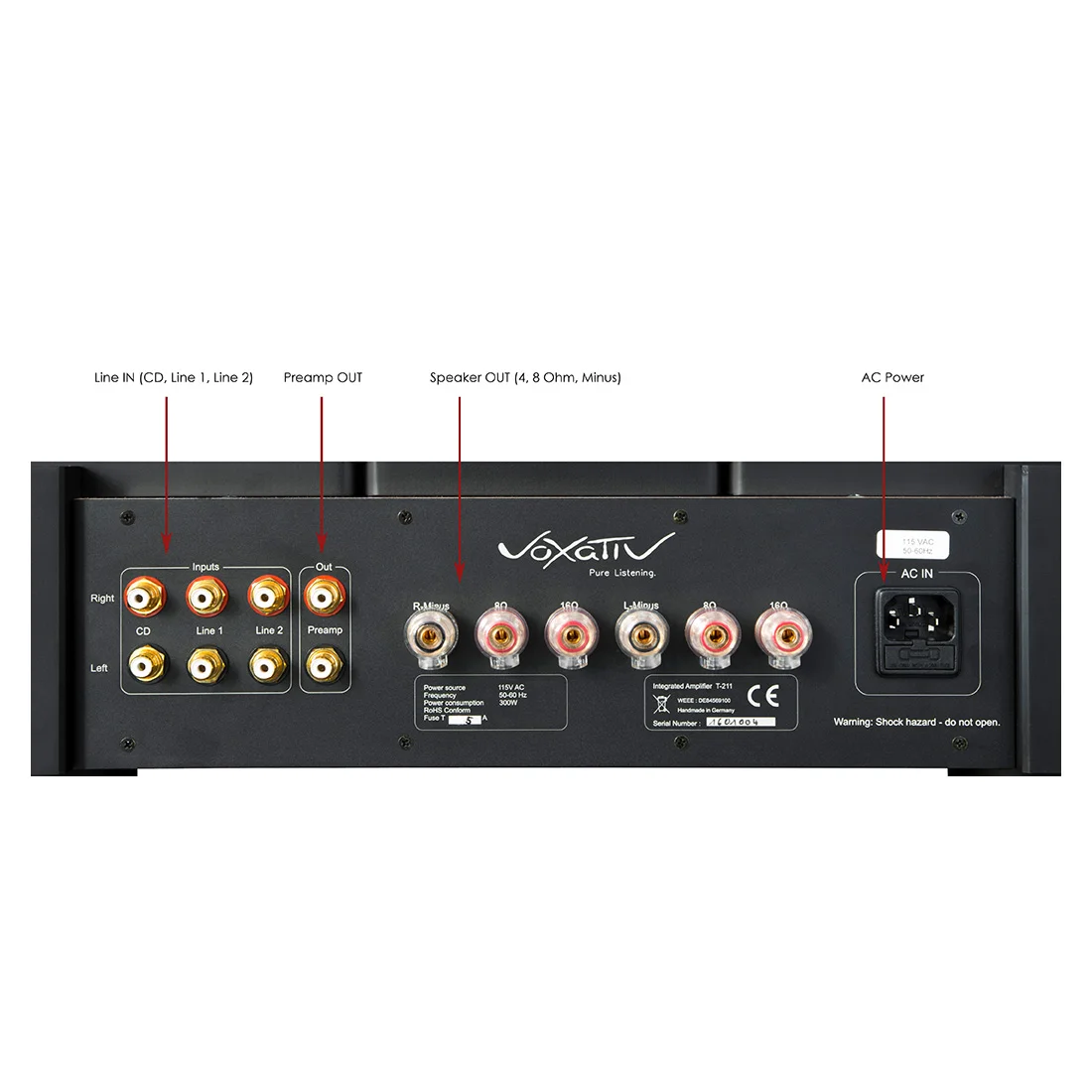

A211_backside_pream out 1100.jpg

"If you want something done right – do it yourself” applies to everything we do.

So, we built a new SET integrated to drive lower efficient speakers in Voxativ quality. This version features Psvane 805 tubes in teflon sockets, a 48-step motor-driven attenuator, remote control + separate heating and AC transformers housed in an AST® tuned chassis milled from a 110lbs block of aluminum.


T805 Setup

Depending on your room, equipment and listening habits – there are a number of ways to configure The T805 with special tubes and Voxativ cabling to meet the needs of your speakers.
Of course the unit works well with all Voxativ products.





T805 IN THE PRESS

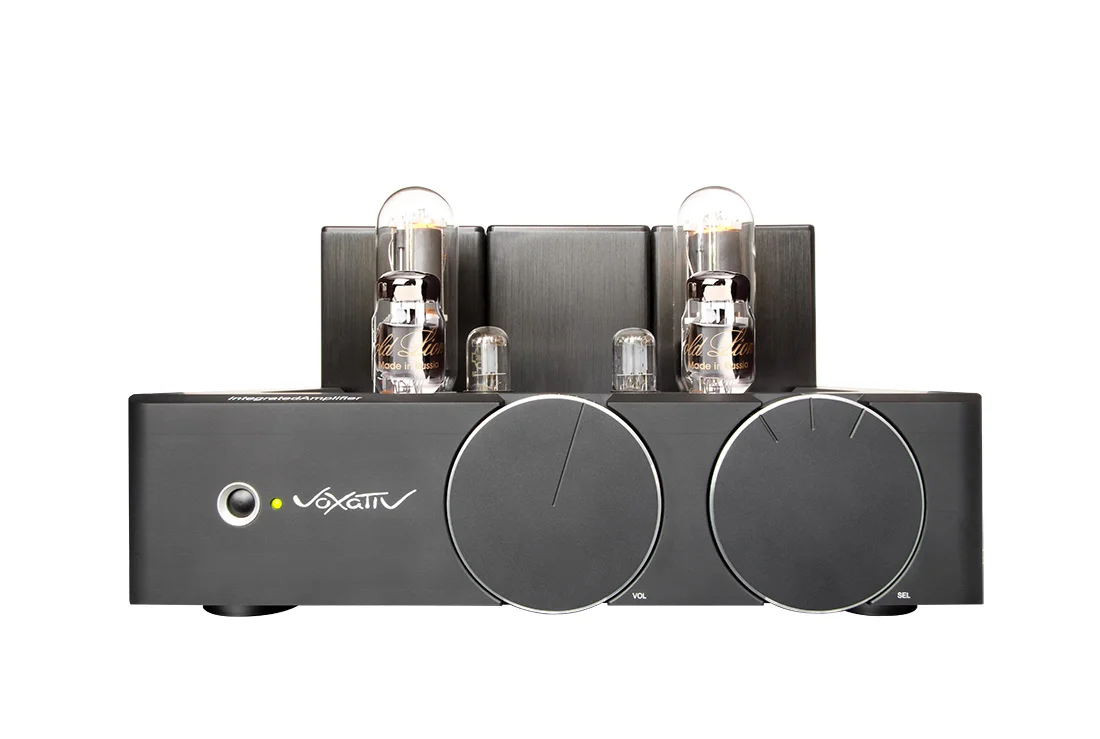

805 front 1100.jpg

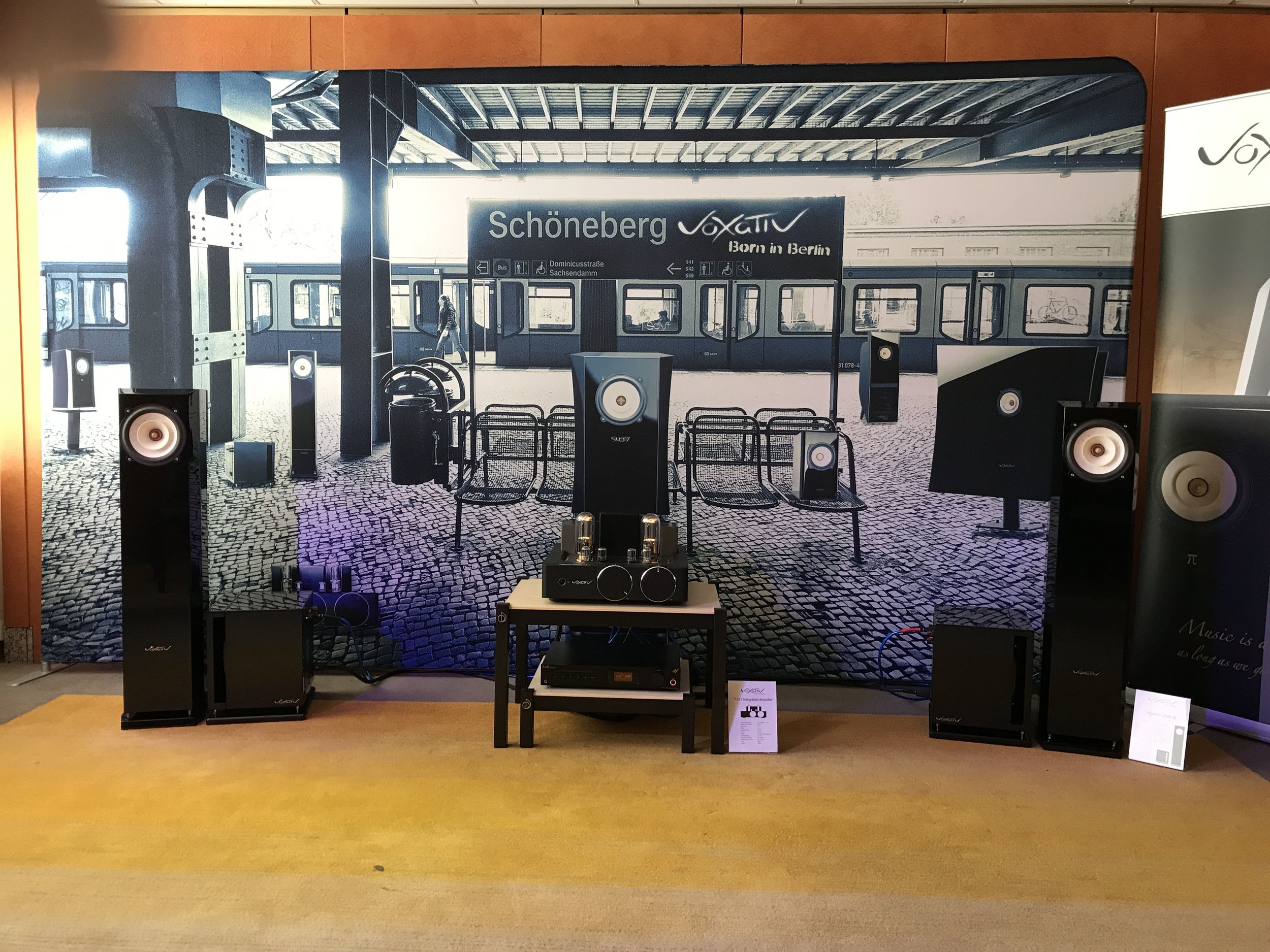

Presented in Munich at the High End Show 2018


T805 PLAYS LIVE



Coming soon


T805 IN DETAIL

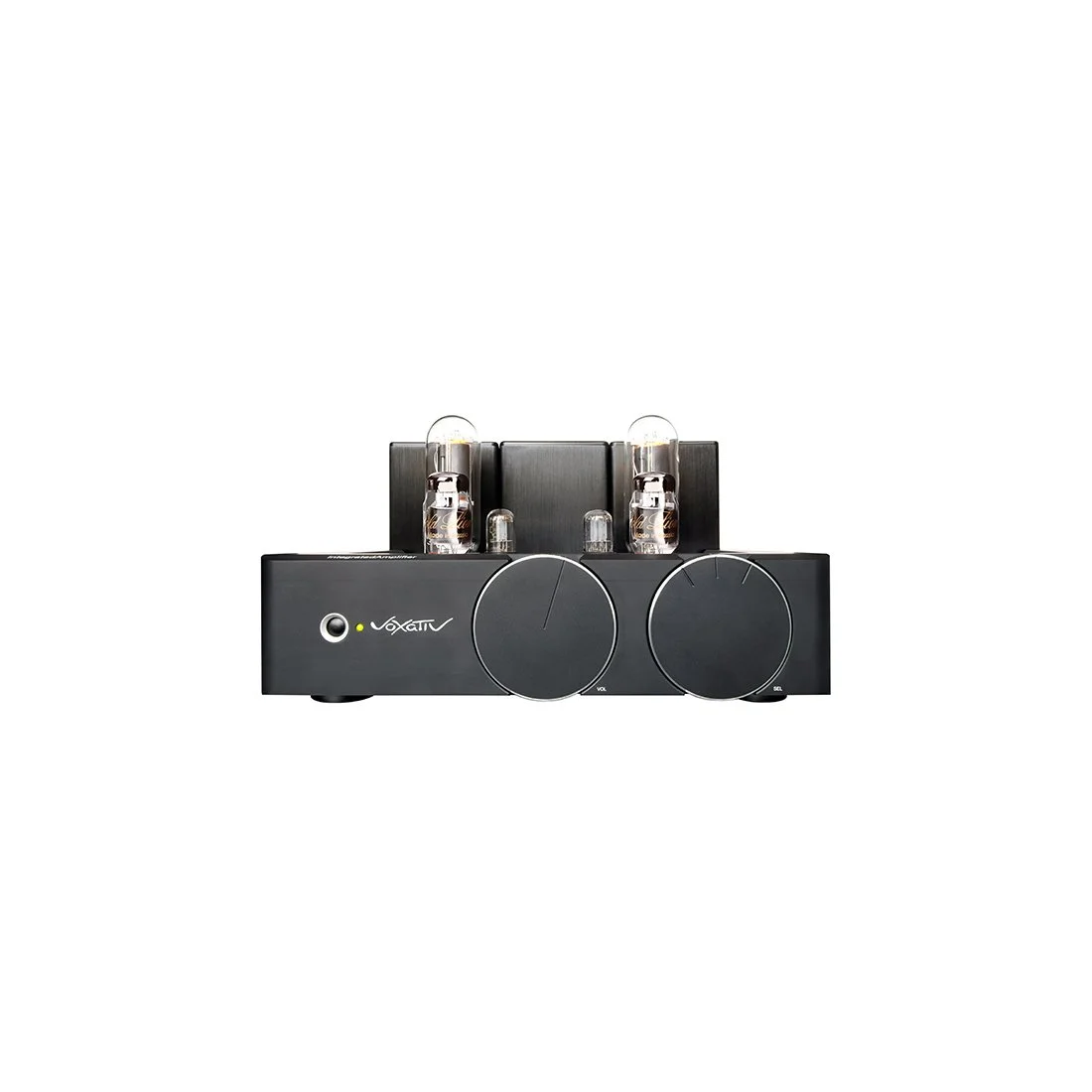

The prettiest way to drive your lower efficiency speakers.
30 watts of single ended 805 tube sound.

The Voxativ 805-based Ampeggio amplifier is a new 120 lbs. (55 kg) beauty. It is inbuilt in a one-piece housing that is milled out of a 150 lbs (63kg) aluminium block. The outside surface is anodized, not painted.

The internal circuit is DC coupled. No interstage choke - this means a new genius circuit to transfer your music to the power tubes. A channel separated power supply is implemented. The KT66 driver stage works in triode mode driven by the ECC83 input stage. And, of course: All is single ended, pure class A. All coupling capacitors by Mundorf.

We use special designed Voxativ transformers only. These transformers are musical instruments - like our drivers. And this is what you get.

The Voxativ T805 Ampeggio amplifier: Excellent sound for all Voxativ and other lower efficiency speakers. This amplifier is equipped with a preamp-out stage to drive the Voxativ PI-Bass woofer units direct and without any loss.

This amplifier is handmade by the team of Voxativ in Fulda/Germany.

Technical data

Frequency Response
20 - 20.000 Hz

Signal to Noise Ratio
97 dB

Distortion
2 %

Tubes
2 x 805 - Selected Psvane Tubes with gold plated connectors
2 x KT66 - Gold Dragon driver Tubes
2 x ECC83 - input Tubes

Input Sensitivity
180 mV

Input
3 x line

Output
8/16 Ohm speakers
volume controlled preamp-out

Power Handling
2 x 30 W

Power Consumption
340 W

Colour
black

Dim (W x H x D)
17 x 10 x 19" (43 x 25 x 47 cm)

Weight
120 lbs (55 kg)
